Blade Profile Inspection · Mission Sim葉片輪廓巡檢 · 任務模擬ブレード形状点検 · ミッションシミュレーター

Free 14-day trial免費試用 14 天14日間の無料トライアル · Shown for promotion. Want it for your team? Email fabien-starseed@agentmail.to.僅作展示。想讓團隊使用?請來信 fabien-starseed@agentmail.to。紹介のみです。チームで使いたい場合は fabien-starseed@agentmail.to までご連絡ください。
Category分類カテゴリーWind Energy風能與風電風力エネルギー
Platform平台プラットフォームWeb · any device網頁 · 任何裝置ウェブ · あらゆる端末
Languages語言言語EN · 中文
Status狀態ステータスLive線上運行稼働中

Is Turbine Inspection Simulator or DJI Flight Simulator better for rehearsing a wind-turbine blade inspection?要預演風機葉片巡檢,Turbine Inspection Simulator 和 DJI Flight Simulator 哪個比較適合?風車ブレード点検のリハーサルには、Turbine Inspection SimulatorとDJI Flight Simulatorのどちらが向いていますか?

Turbine Inspection Simulator is a web simulator for drone pilots and inspection planners. It lets you rehearse a full wind-turbine blade inspection, three blades across four passes, with a live feed, timing and weather windows before you go on site.Turbine Inspection Simulator 是為無人機飛手與巡檢規劃人員打造的網頁模擬器,讓你在前往現場之前,以即時影像、計時與天氣窗口,預演完整的風機葉片巡檢(三支葉片、四道路徑)。Turbine Inspection Simulatorは、ドローン操縦者と点検計画担当者向けのウェブシミュレーターです。現場に行く前に、ライブ映像・タイミング・気象ウィンドウを使い、風車ブレード点検の全工程(ブレード3枚×4経路)をリハーサルできます。

If you want to rehearse a complete three-blade, four-pass inspection mission with live feed, timing and weather windows before you go on site, Turbine Inspection Simulator is built for that. DJI Flight Simulator is the better choice if you want to practise stick skills with real DJI controllers and flight physics. Turbine Inspection Simulator rehearses the mission plan; it does not replace pilot training.如果你想在前往現場之前,以即時影像、計時與天氣窗口預演完整的三葉片、四路徑巡檢任務,Turbine Inspection Simulator 正是為此設計。若你想用真實的 DJI 遙控器與飛行物理練習操控技巧,DJI Flight Simulator 更合適。Turbine Inspection Simulator 預演的是任務規劃,並不能取代飛手訓練。現場に行く前に、ライブ映像・タイミング・気象ウィンドウを使って、ブレード3枚×4経路の点検ミッション全体をリハーサルしたいなら、Turbine Inspection Simulatorはそのために作られています。実際のDJIコントローラーと飛行物理で操縦の腕を磨きたいなら、DJI Flight Simulatorのほうが適しています。Turbine Inspection Simulatorが練習するのはミッション計画であり、操縦者訓練の代わりにはなりません。

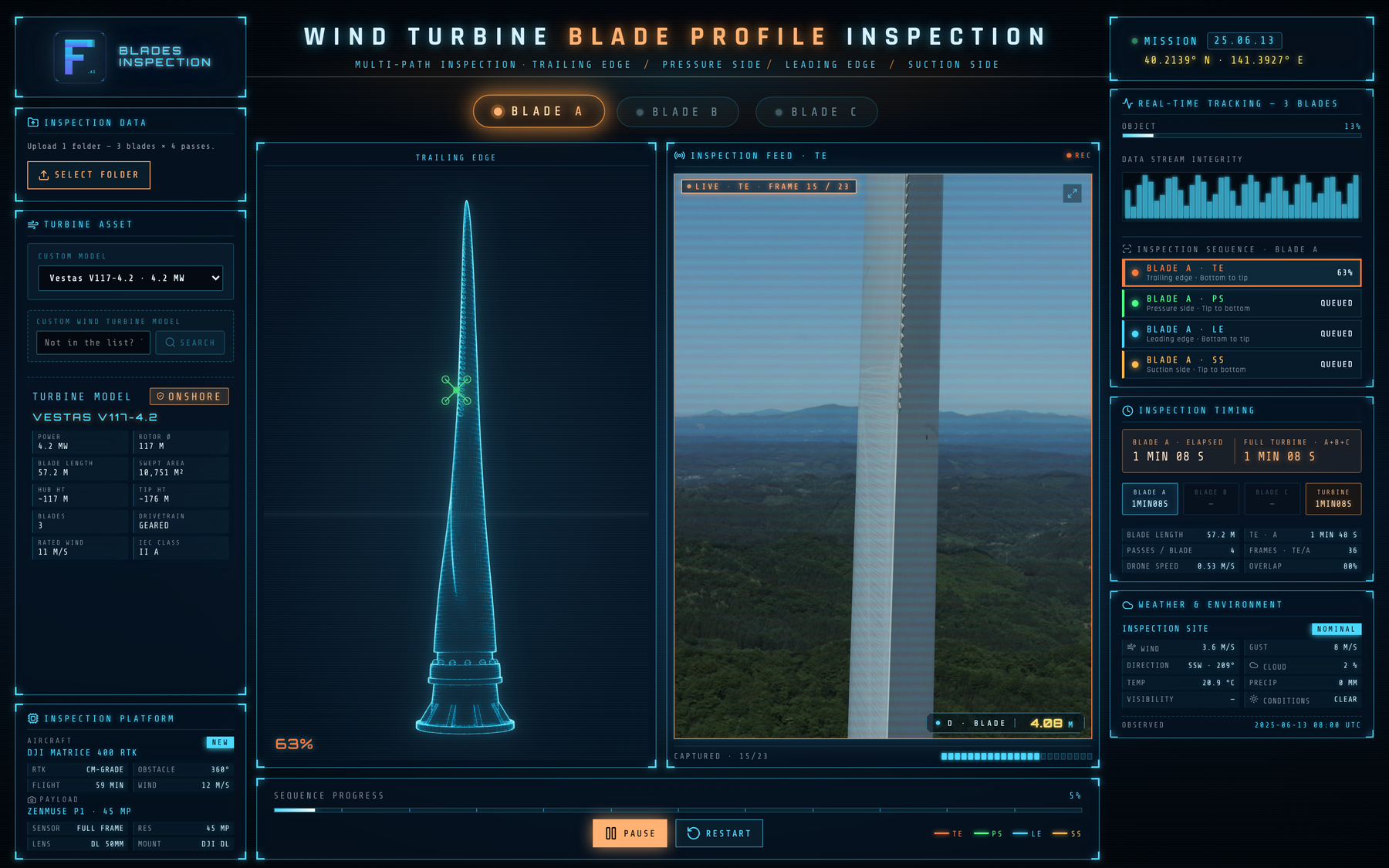

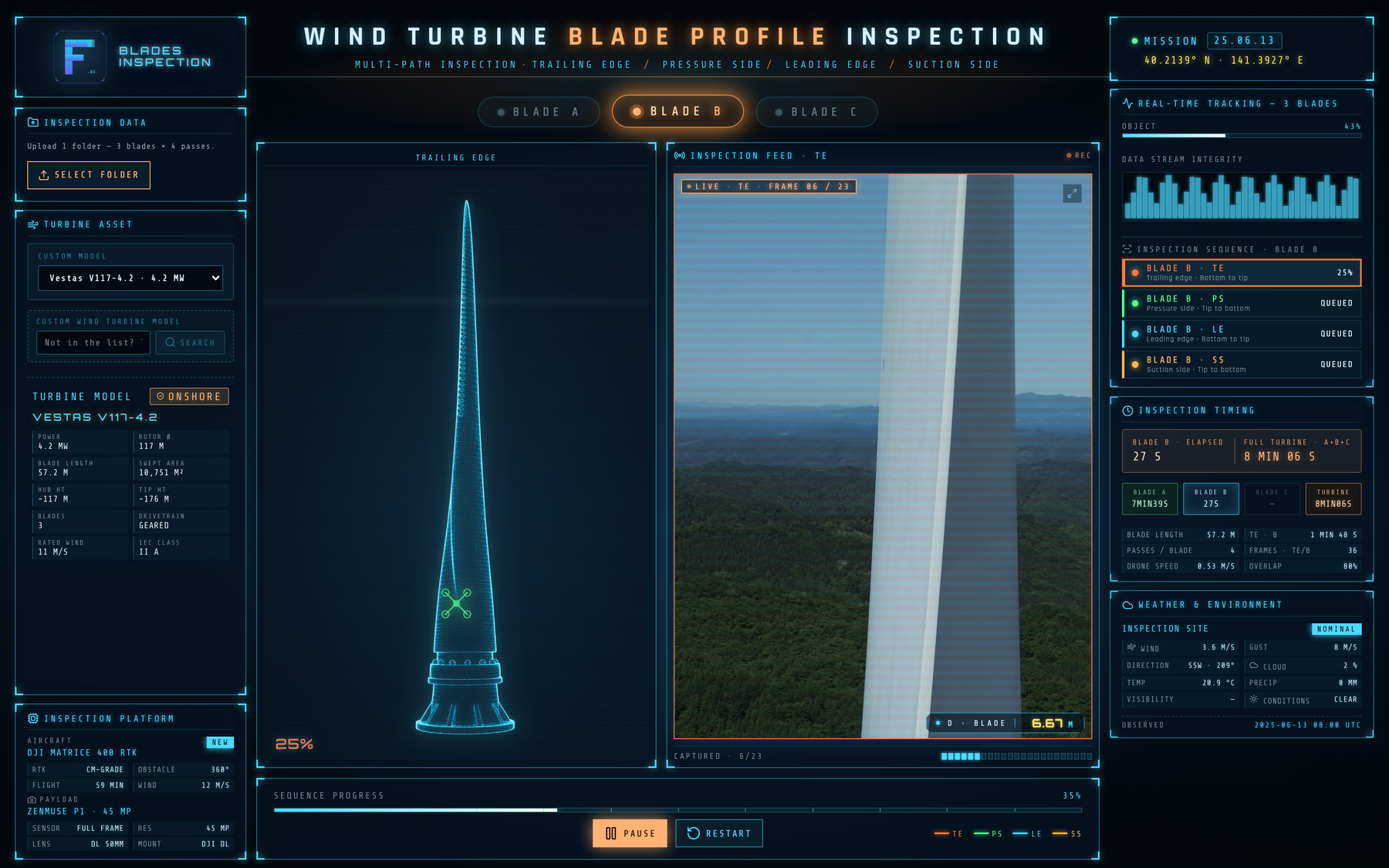

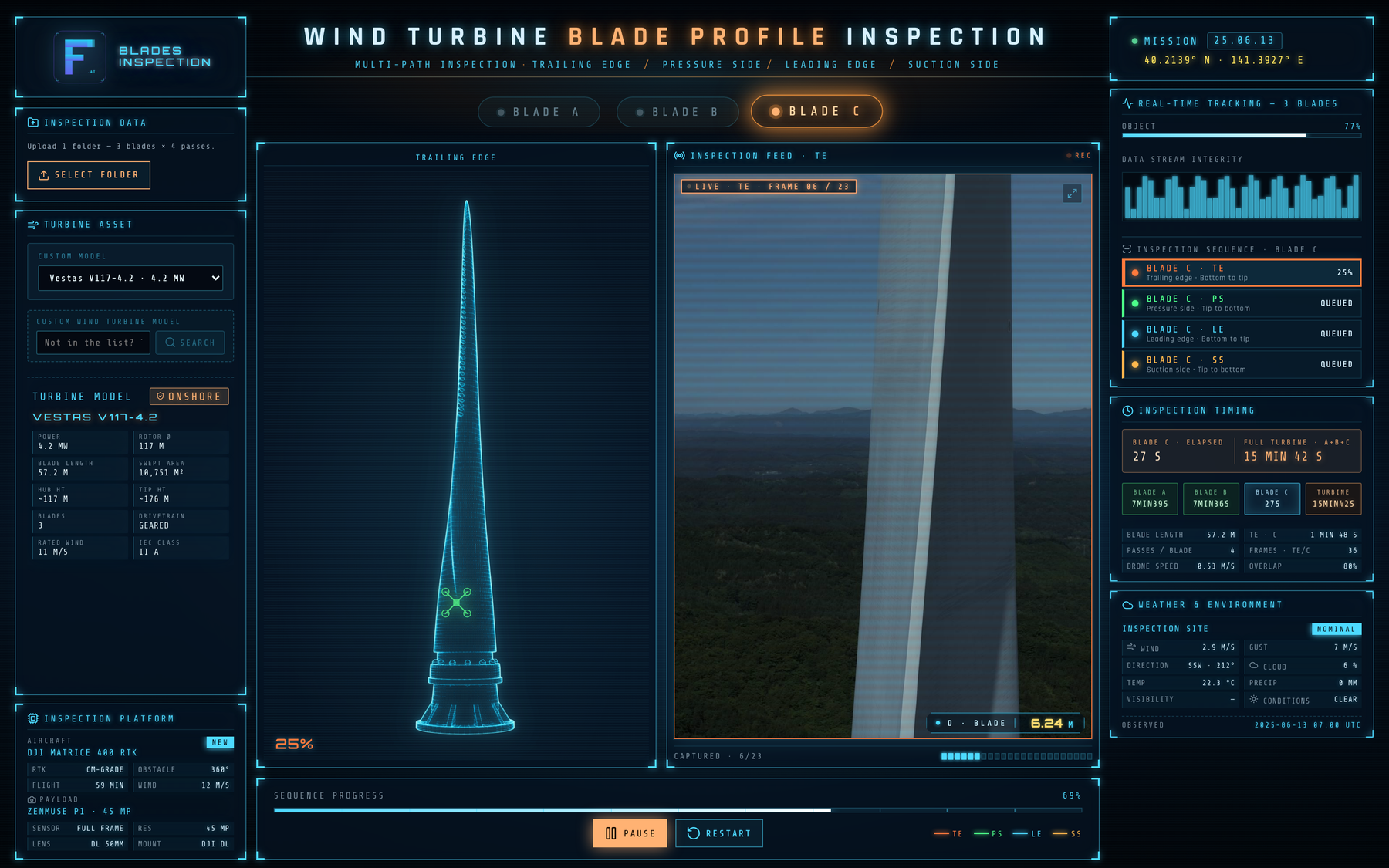

Preview預覽プレビュー

About Turbine Inspection Simulator關於 Turbine Inspection SimulatorTurbine Inspection Simulator について

Fly the inspection before you fly the inspection. Pick the turbine, run all three blades across trailing edge, pressure side, leading edge and suction side, and watch the live feed, timing and weather windows update exactly as they would on site, so the real flight is the rehearsal, not the gamble.在真正起飛前,先把整套巡檢飛一遍。選定機型,讓三支葉片依序完成後緣、迎風面、前緣與背風面四道路徑,即時影像、計時與天氣窗口都如現場般同步更新,讓真正的飛行成為彩排,而非賭注。本番の点検飛行の前に、点検をひと通り飛んでおく。風車を選び、3枚すべてのブレードを後縁・正圧面・前縁・負圧面の4経路で点検すると、ライブ映像・タイミング・気象ウィンドウが現場さながらに同期更新されます。本番の飛行をリハーサルに変え、賭けにしないために。

The Turbine Inspection Simulator lets pilots rehearse a full wind-turbine blade inspection before they ever leave the ground. You pick a real turbine model (with its actual power rating, rotor diameter, blade length and hub height) and fly the complete mission: three blades, four passes each across the trailing edge, pressure side, leading edge and suction side.渦輪巡檢模擬器讓飛手在真正起飛前,先把整套風機葉片巡檢演練一遍。你選定一款真實機型,帶有實際的功率、轉子直徑、葉片長度與輪轂高度,並飛完整套任務:三支葉片,每支沿後緣、迎風面、前緣與背風面各飛四道路徑。タービン点検シミュレーターは、操縦者が地上を離れる前に風車ブレード点検をひと通り予行演習できるツールです。実在の風車モデル、実際の出力・ロータ直径・ブレード長・ハブ高さを備えたものを選び、ミッション全体を飛びます。ブレード3枚を、それぞれ後縁・正圧面・前縁・負圧面の4経路で点検します。

As you run the mission, a live blade feed, frame capture, timing and on-site weather windows update the way they would during a real inspection, so you learn the sequence and the pacing without burning battery, daylight or a client's patience. It's training for new pilots and a planning sandbox for experienced ones sizing up an unfamiliar turbine.執行任務時,即時葉片影像、逐幀擷取、計時與現場天氣窗口都如真實巡檢般同步更新,讓你在不耗電池、不耗日照、也不耗客戶耐心的情況下,掌握流程與節奏。對新手是訓練,對評估陌生機型的老手則是規劃沙盒。ミッション実行中は、ライブのブレード映像・フレーム取得・タイミング・現場の気象ウィンドウが、実際の点検と同じように更新されます。バッテリーも日照も顧客の忍耐も消費せずに、手順とペース配分を習得できます。新人操縦者には訓練、不慣れな風車を見極めるベテランには計画用のサンドボックスになります。

Built solo by FABIEN-STARSEED.AI, an independent software builder in Taiwan, the simulator runs in English and Traditional Chinese. The outcome: the real flight becomes the rehearsal, not the gamble.本模擬器由身在台灣的獨立軟體開發者 FABIEN-STARSEED.AI 獨力打造,支援英文與中文。成果是:讓真正的飛行成為彩排,而非賭注。本シミュレーターは台湾の独立系ソフトウェア開発者FABIEN-STARSEED.AIが単独で開発し、英語・中文に対応しています。成果は、本番の飛行を賭けではなくリハーサルに変えることです。

What it does功能特色主な機能

  • ▸Multi-path mission: 3 blades × 4 passes (TE / PS / LE / SS)多路徑任務:3 支葉片 × 4 道路徑(後緣 / 迎風面 / 前緣 / 背風面)マルチパス・ミッション:ブレード3枚 × 4経路(後縁 / 正圧面 / 前縁 / 負圧面)
  • ▸Live inspection feed with frame capture & data-stream integrity即時巡檢影像,含逐幀擷取與資料串流完整度フレーム取得とデータストリーム整合性を備えたライブ点検映像
  • ▸Real turbine models: power, rotor Ø, blade length, hub height真實機型參數:功率、轉子直徑、葉片長度、輪轂高度実在の風車モデル:出力、ロータ直径、ブレード長、ハブ高さ
  • ▸On-site weather & flight windows: wind, gust, visibility, light現場天氣與飛行窗口:風速、陣風、能見度、光照現場の気象と飛行ウィンドウ:風速、突風、視程、日照

Frequently asked questions常見問題よくある質問

Is this a real drone or a simulator?這是真實無人機還是模擬器?これは実際のドローンですか、それともシミュレーターですか?
It's a simulator. You rehearse the full inspection mission (three blades, four passes each: trailing edge, pressure side, leading edge, suction side) on real turbine models with a live blade feed, timing and weather windows, so you learn the sequence before flying the actual job on site.這是模擬器。你在真實機型上演練整套巡檢任務,三支葉片,每支四道路徑(後緣、迎風面、前緣、背風面),搭配即時葉片影像、計時與天氣窗口,讓你在真正到現場執飛前先熟悉流程。これはシミュレーターです。実在の風車モデルで、ライブのブレード映像・タイミング・気象ウィンドウとともに、点検ミッション全体、ブレード3枚、各4経路(後縁・正圧面・前縁・負圧面)を予行演習し、現場で本番を飛ぶ前に手順を習得できます。
Who is the Turbine Inspection Simulator for?渦輪巡檢模擬器適合誰使用?タービン点検シミュレーターは誰のためのものですか?
It's for pilots training for wind-turbine blade inspections and experienced operators planning a mission on an unfamiliar turbine. Rehearse the multi-path flight, pacing and weather decisions before you commit a real flight. Available in English and Traditional Chinese.適合正在受訓進行風機葉片巡檢的飛手,以及要在陌生機型上規劃任務的資深業者。在投入真正飛行前,先演練多路徑航線、節奏與天氣判斷。提供英文與中文。風車ブレード点検の訓練中の操縦者や、不慣れな風車でミッションを計画するベテラン事業者のためのものです。本番飛行に踏み切る前に、マルチパス飛行・ペース配分・気象判断を予行演習できます。英語・中文で利用可能です。
Does it use real turbine specifications?它使用真實的機型規格嗎?実際の風車仕様を使っていますか?
Yes. The simulator uses real turbine models with their actual power rating, rotor diameter, blade length and hub height, and the on-site weather panel mirrors live inspection conditions (wind, gust, visibility and light) so the rehearsal reflects what you'll face in the field.是的。本模擬器採用真實機型,帶有實際的功率、轉子直徑、葉片長度與輪轂高度,現場天氣面板也比照真實巡檢條件(風速、陣風、能見度與光照),讓演練貼近你在現場將遇到的情況。はい。本シミュレーターは実在の風車モデルを使用し、実際の出力・ロータ直径・ブレード長・ハブ高さを備えています。現場の気象パネルもライブの点検条件(風速・突風・視程・日照)を反映するため、予行演習が現場で直面する状況に近づきます。
